Nd:YAG - Resonator Modules

80 Watt CW Nd:YAG-Model 80CW

Specifications
Wavelength: 1.06 µm
Maximum Output Power: 80 Watt
Beam Diameter: 4 mm
Typical Beam Divergence: 18 mrad
Typical Dimensions: 20 x 3 x 3 inches
Typical Weight: 4.5 lb.
Input Requirements
Maximum Input Power: 2.5 kW
Maximum Current: 20 Amps
Igniter Voltage: 20-25 kV
Boost Voltage: 1200 V
Flow Rate (Water): 1.5 GPM (65-105 °F)
System Pressure: Approximately 40 psi

80CW Schematic

Schematic

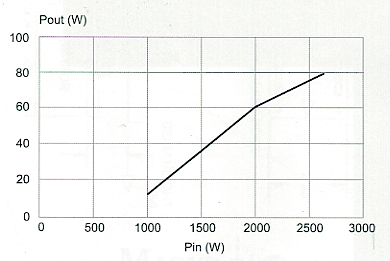

80CW Typical Performance

Typical Performance

Flow: 1.7 GPM, @90 °F, R=88%
