25 Watt Er:YAG 25E/HD - Resonator Module

Specifications
Wavelength: 2.94 µm
Maximum Output Energy: 800 mJ/pulse
Output Power (15 Hz): 25 Watt
Maximum Repetition Rate: 50 Hz
Beam Diameter: 4 mm
Typical Beam Divergence: 15 mrad
Pulse Length: 100-150 µsec
Typical Dimensions: 20 x 3 x 3 inches
Typical Weight: 4.5 lb.
Input Requirements
Maximum Input Energy: 50 J/pulse
Maximum Input Power: 1.2 kW
Typical Pulse Length (PFN): 160-400 µsec (30 µF, 100 µH)
Flow Rate (Water): 1.5 GPM (60-100 °F)
System Pressure: Approximately 40 psi

25W Er:YAG-Model 25E/HD Schematic

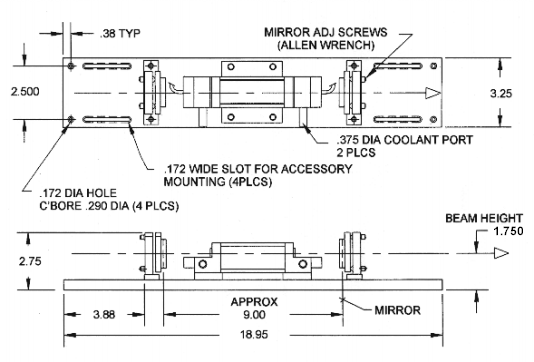

Mechanical Drawing of 25 Watt Er:YAG

25E/HD Typical Performance

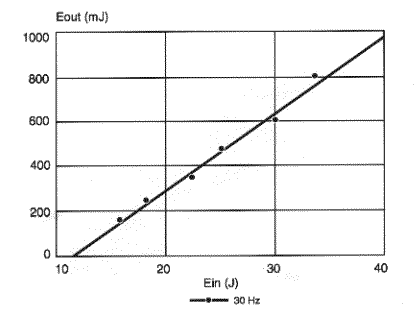

Performance Chart of 25 Watt Er:YAG

C=30 µF, L=100 µH, 90%R, 1.5 GPM, 27 °C
